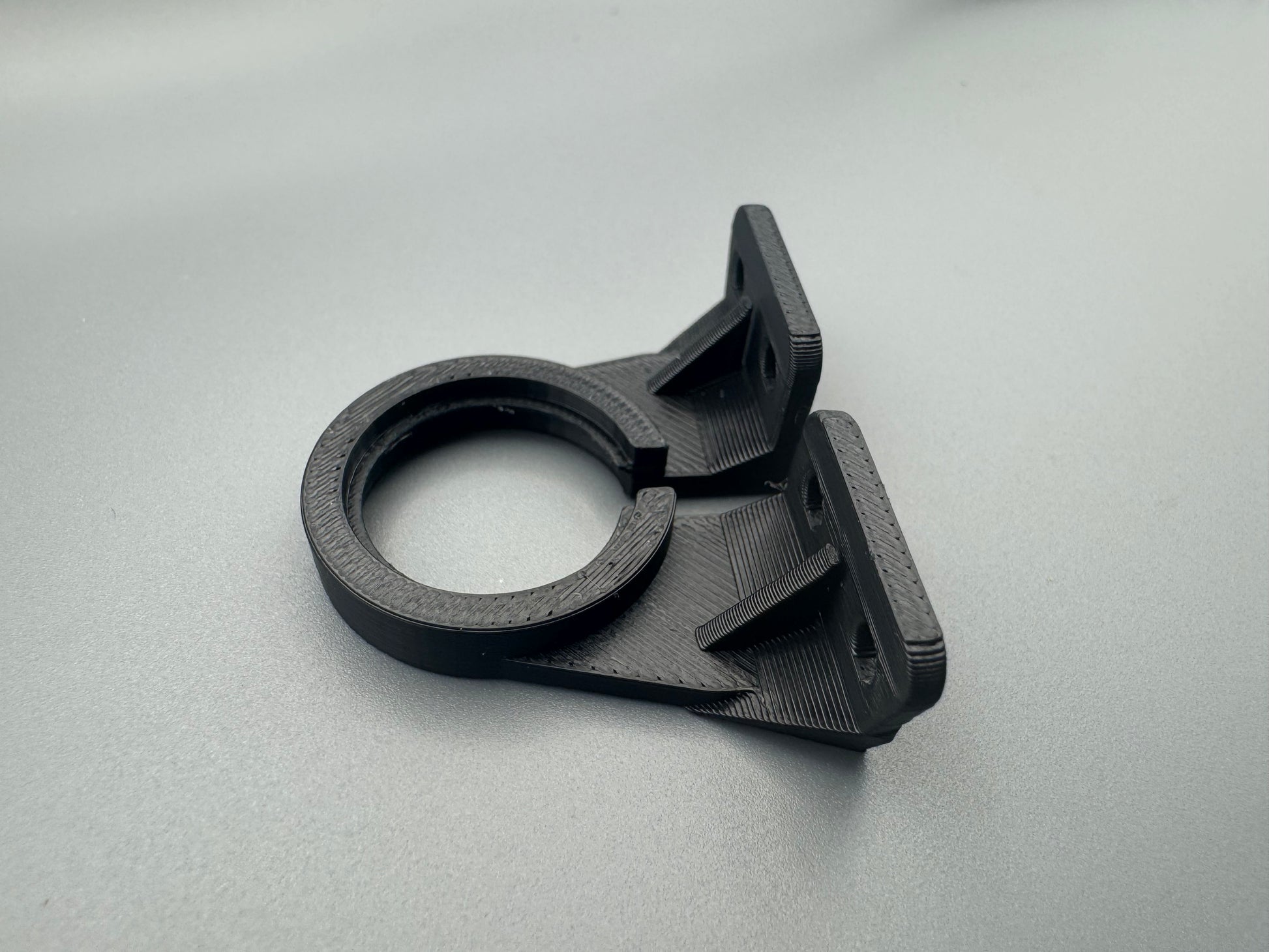

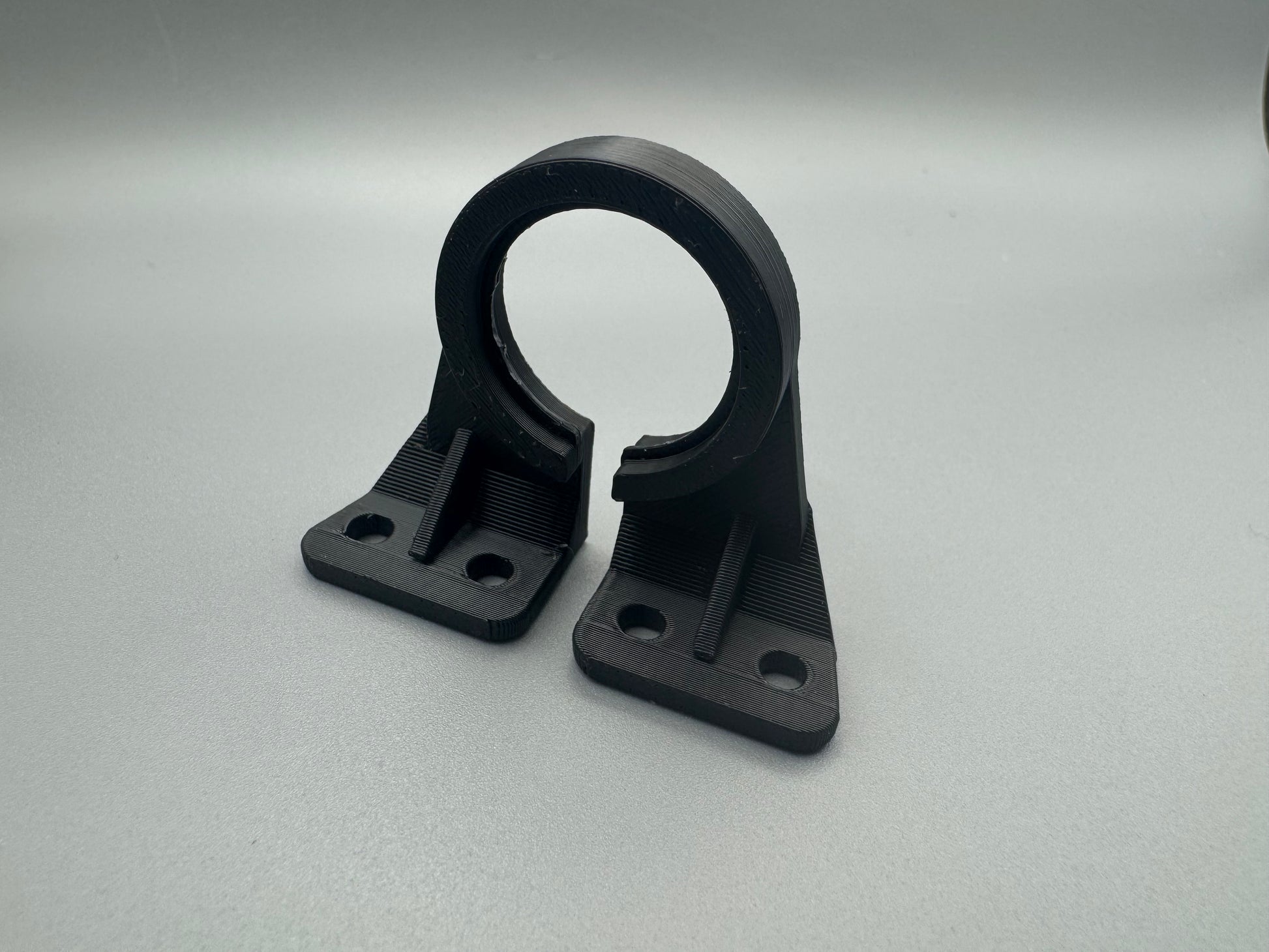

90-Degree Conduit Clip – Bulkhead Mount Version-10 pack

The TFlight77 90-Degree Conduit Clip was designed out of necessity during the wiring infrastructure installation on my RV-8 project aircraft. Standard conduit clips work well for flat mounting surfaces, but certain locations—especially bulkheads—require a secure 90-degree mounting solution. This clip solves that problem.

This version allows conduit to be mounted perpendicular to the attachment surface, making it ideal for bulkheads, vertical structure members, and other locations where traditional inline clips won’t work.

Like all TFlight77 conduit clips, this design prioritizes clean routing, secure retention, and long-term serviceability of your aircraft wiring.

Key Features

• 90-Degree Mounting Design – Ideal for bulkheads and vertical mounting surfaces
• Secure Conduit Retention – Holds conduit firmly while allowing easy installation
• Clean, Professional Wire Routing – Improves organization and overall wiring layout
• Lightweight and Durable – Optimized for experimental aircraft applications
• Builder-Tested Design – Developed and used during real RV-8 aircraft construction
• Matches Existing TFlight77 Conduit Clip Ecosystem

Material

Printed in ASA filament, chosen for its:

• High temperature resistance
• UV resistance
• Excellent durability
• Long-term stability in aircraft environments

ASA is significantly more suitable than PLA or PETG for aircraft interior applications.

Applications

Perfect for:

• RV-series aircraft
• Experimental / homebuilt aircraft
• Avionics wiring conduit routing
• Bulkhead conduit mounting
• Firewall-aft wiring infrastructure
• General aviation wiring organization

Important Notes / Disclaimer

This product is intended for experimental and amateur-built aircraft use only.

Builder is responsible for determining suitability for their specific application. Always follow accepted aircraft building practices.

Designed by a Builder, for Builders

Every TFlight77 product is developed during the real-world construction of my RV-8 aircraft to solve actual installation challenges. If it doesn’t improve the build, it doesn’t make it into the store.

20mm CTPA Conduit is available from Wirecare.com.  Recommended installation hardware 2ea 1/8 (-4) pull rivets (not included).

This is for a 10 pack of clips.  1 installation tool will be included as well per order.
