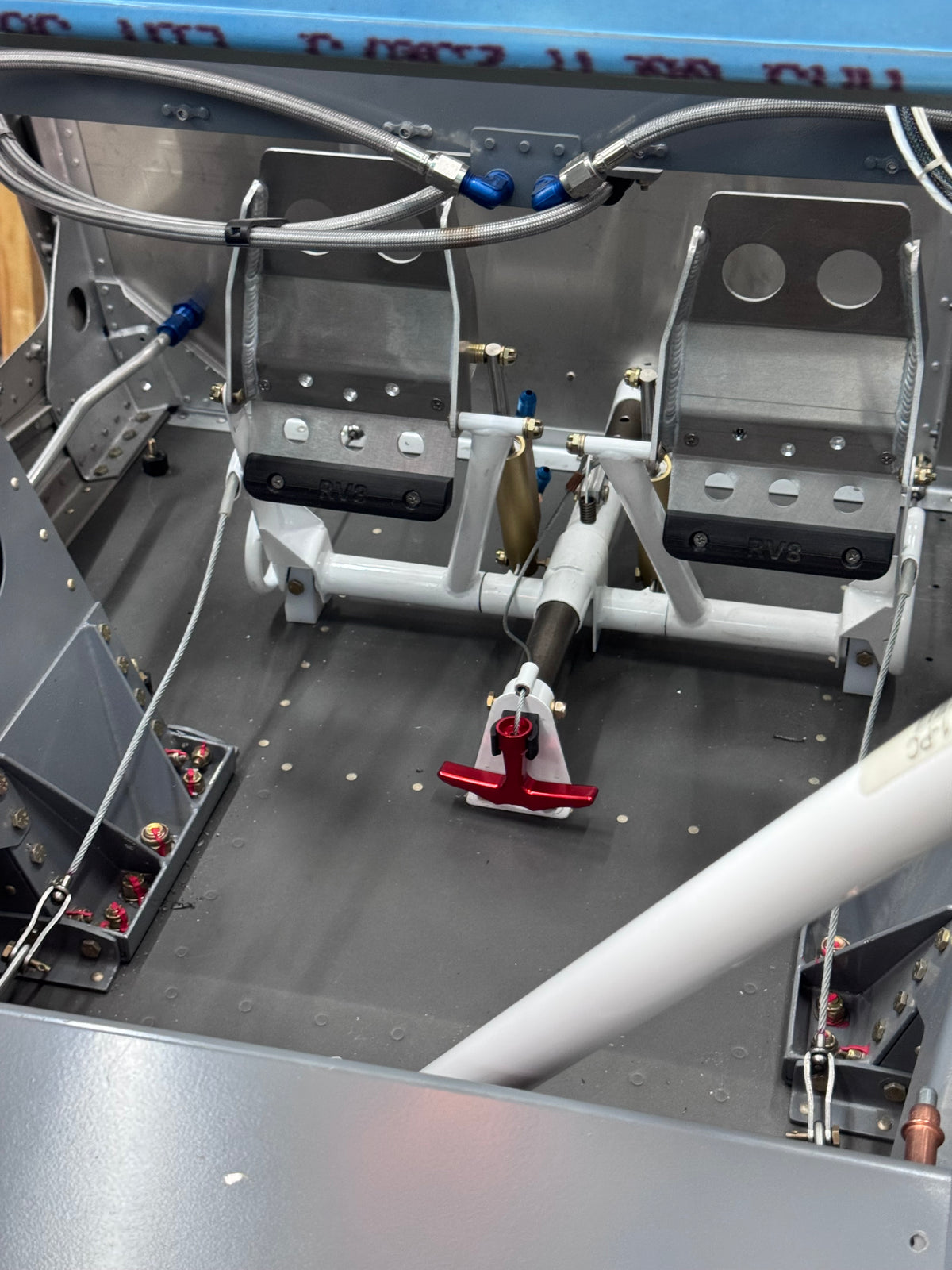

Hold rudder without riding the brake. On a stock RV-8 pedal, everything your foot touches is above the pivot, so every rudder input carries some brake input with it. These extensions put about two inches of foot surface below the pivot. Push there and you get rudder only.

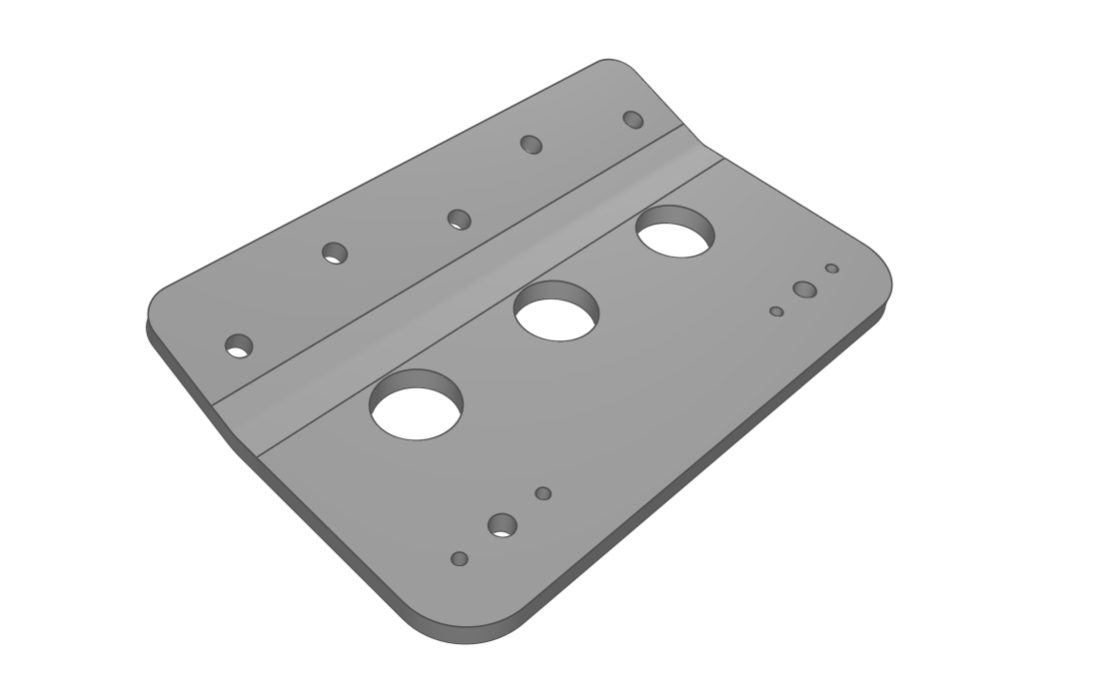

Upgrade the size and feel of the standard Van’s RV-8 rudder pedals with this downloadable DXF file for a pair of custom rudder pedal extensions. I originally designed these extensions for my own RV-8 build, from a 3D scan of a standard Van’s RV-8 aluminum rudder pedal, to provide a larger pedal surface while retaining the existing Van’s rudder pedal assembly. The finished extensions mount directly to the existing RV-8 rudder pedals using 8-32 screws and nuts.

The DXF file can be uploaded directly to a service such as SendCutSend or provided to your preferred CNC, laser, or waterjet cutting service.

Recommended material:
5052-H32 aluminum, 0.187" (3/16") thick

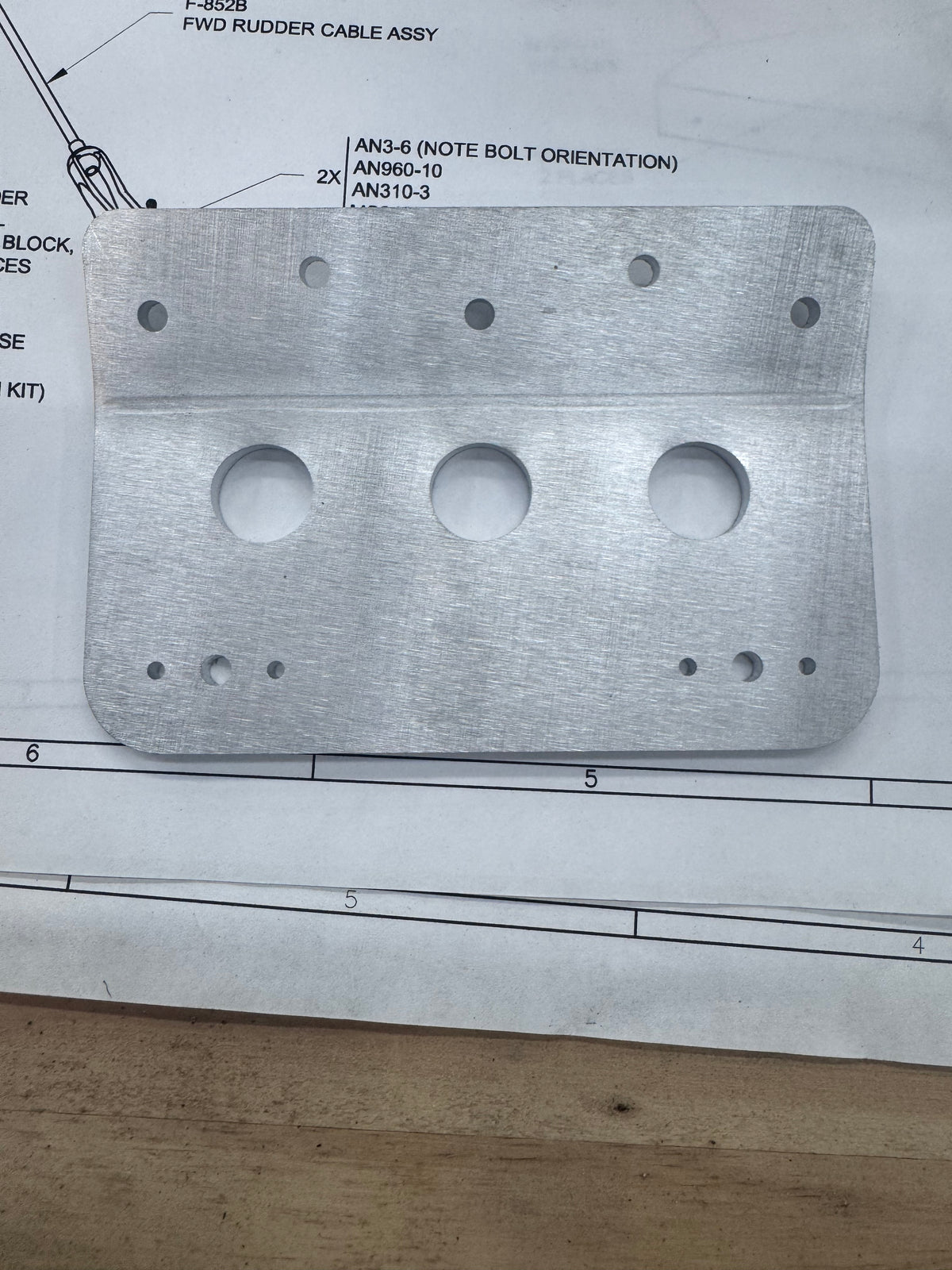

My own set was cut from 5052 at 0.187" and formed with a 20° bend.

The pedal extensions can also be used as a drill guide for locating the mounting holes in the existing RV-8 rudder pedals. Installation requires drilling and countersinking your pedal face.

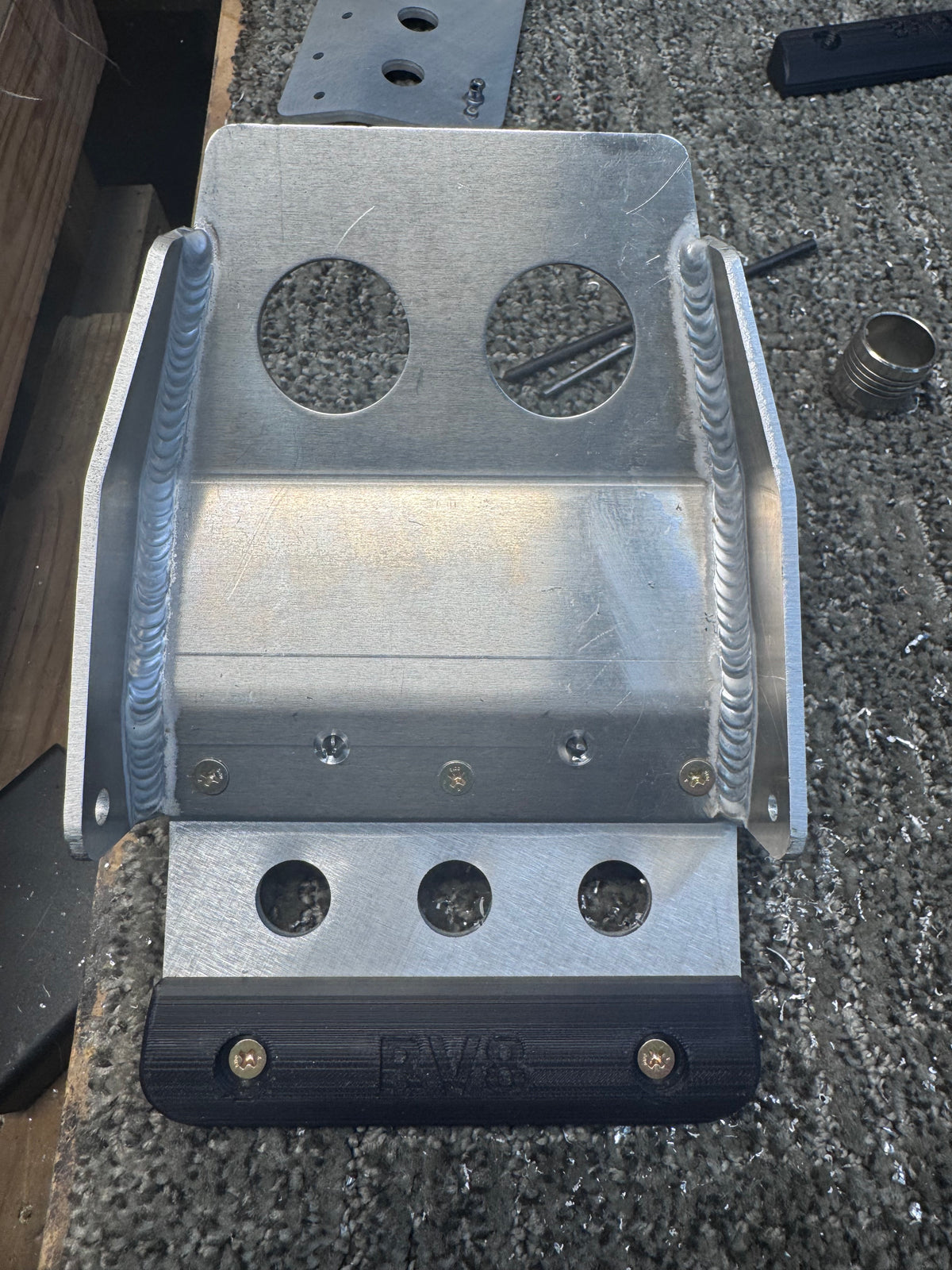

Two additional mounting locations are incorporated at the bottom of each extension for K1000-08 nutplates. These provide mounting points for the optional ASA 3D-printed rudder pedal bolster, available separately from the TFlight 77 Store.

This product includes:

• DXF file for the RV-8 rudder pedal extension

• Design produces a matching left/right pair

• Mounting provisions for 8-32 hardware

• Mounting provisions for two K1000-08 nutplates per pedal

• Compatible with the optional TFlight 77 / ASA 3D-printed pedal bolster

DIGITAL DOWNLOAD ONLY

No physical parts, aluminum, hardware, nutplates, or bolster are included.

License & Use

Purchase of this file grants the purchaser a personal-use license to fabricate parts for their own aircraft/project. The purchaser may provide the DXF file to a fabrication service solely for the purpose of producing parts for their personal use.

The DXF file and design may not be resold, redistributed, shared, uploaded, published, transferred, or otherwise distributed in digital or physical form. The file may not be used to manufacture parts for commercial sale without prior written permission from TFlight 77 LLC.

Purchase of this product does not transfer ownership or intellectual-property rights to the design. All rights not expressly granted remain with TFlight 77 LLC.

Builder Responsibility

The builder is responsible for selecting appropriate material, fabrication methods, hardware, installation, and verifying proper fit, clearance, rudder travel, and brake operation in their individual aircraft.

This is a builder-designed experimental aircraft component and is not a Van’s Aircraft product or an FAA-approved part.
